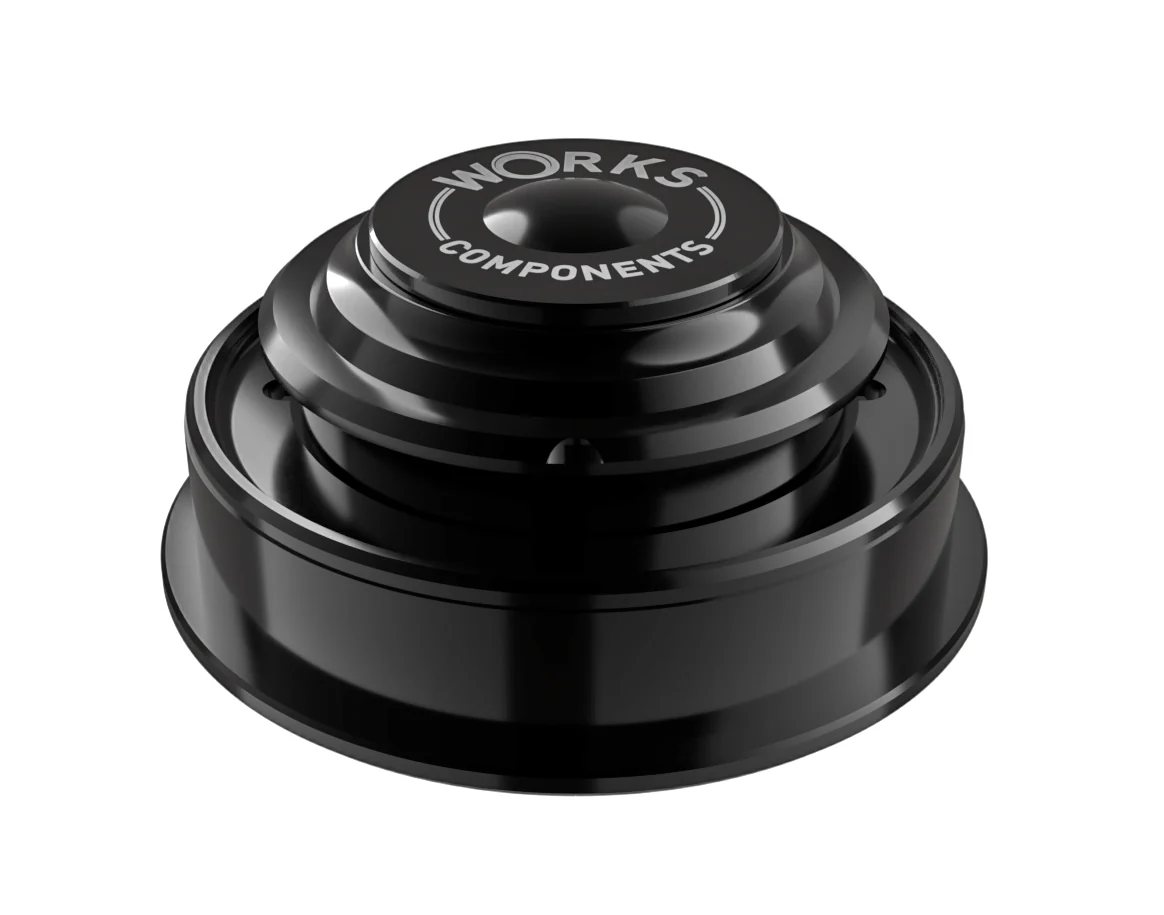

ZS44/ZS62 Angle Headset

The Works Components angle headset makes it possible to change the head angle of any mountain bike that uses ZS44/ZS62mm cups.  You can choose between two offset angles with steeper or slacker adjustment from 1° to 1.5°. Use of this headset requires measuring your head tube length to select the correct headset.

This headset is not compatible with Ohlins' integrated crown race. If your headtube is between sizes, it it advised to size up to the larger size.

[Size Chart]

Evil Following LS	SM	MD	LG	XL
Headtube Length	90mm	110mm	110mm	120mm
Evil Offering LS	SM	MD	LG	XL
Headtube Length	95mm	105mm	115mm	125mm
Evil Epocalypse	SM	MD	LG	XL
Headtube Length	104mm	114mm	127mm	139mm
Evil Insurgent LS	SM	MD	LG	XL
Headtube Length	104mm	114mm	127mm	139mm
Evil Wreckoning LS	SM	MD	LG	XL
Headtube Length	104mm	114mm	127mm	139mm
Evil Calling	SM	MD	LG	XL
Headtube Length	106mm	120mm	133mm	147mm

[/Size Chart]
